Water Treatment
Background
- Many water scarcity areas in our country suffer from paucity of resources and poor planning
- We waste a lot of water being a gift of nature
- This leads to water scarcity
- There is urgent need to understand its value, plan its use and conserve it
- Efforts to harvest every drop of rain are essential but not enough
- Reuse and recycle will help us replenish the depleted ground water
- Proper treatment of waste water will help in cleaning up the natural sources of water
Purpose
- To create awareness of simple indigenous technologies to treat water for recycling and reuse
- Overcome scarcity with recycle and reuse using economically and technically viable solutions
- Offer a solution that is light on investment and simple to operate
Technology
- Natural process of cleaning by using bio-filters
- Few external chemicals used for treatment
- No wastage No sludge No obnoxious smell
- Every component of out put useful
- Simple to establish and easy to operate
- Low power consumption
- Except small water/sludge pumps no moving part
- No corrosion No erosion
- Low cost of operation
Benefits
- Low processing cost
- ?Excellent results Consistent results
- ?Indigenous technology with complete support

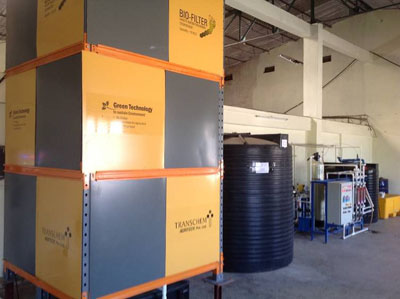

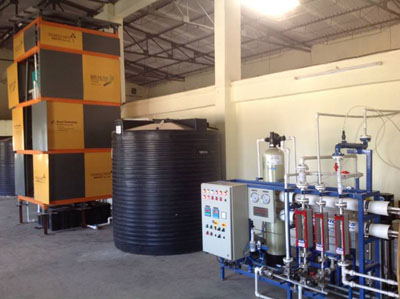

Small Bio Filter + Nano Filter Plant

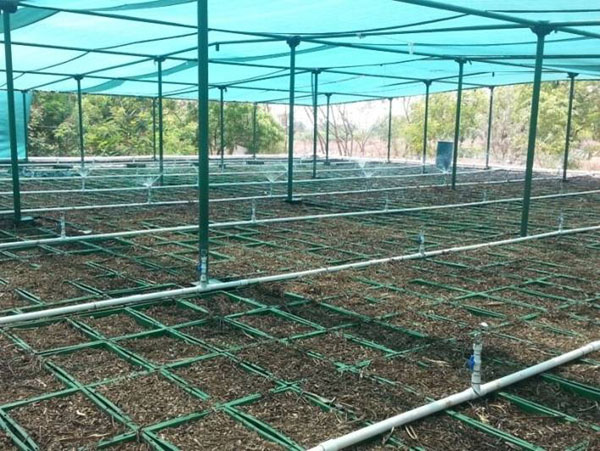

Large Capacity Plant
Sewage Treatment Plants Installed
Sr. No |
Name & Location |
Kind of waste water |
Cap. In KLD |
Before Treatment Water Quality |
Treated Water? Quality |
% COD Reduction |
1 |
Excel Crop Care Ltd, Bhavnagar |
Sewage |
800 |
BOD:? 100-200 PPM COD:? 200-400 PPM Turbidity: 40-100 NTU |
BOD: 10-20 PPM COD: 50-80 PPM Turbidity: <2 NTU |
80.00% |
2 |
M/s Transpek Industry Ltd, Vadodara |
Sewage |
50 |
BOD:? 100-200 PPM COD:? 200-400 PPM Turbidity: 40-100 NTU |
BOD: 10-20 PPM COD: 50-80 PPM Turbidity: <2 NTU |
80.00% |
3 |
Agrocel, Kutch |
Sewage |
25 |
BOD:? 300-400 PPM COD:? 500-800 PPM Turbidity: 200-250 NTU |
BOD:20-30 PPM COD: 80-100 PPM Turbidity: 10-15 NTU |
87.50% |
4 |
Sam Fine O Chem, Rajkot |
Sewage |
10 |
BOD:? 100-200 PPM COD:? 800-1200 PPM Turbidity: 200-250 NTU |
BOD: 18-20 PPM COD: 50-60 PPM Turbidity:? <5 NTU |
> 95.00% |
5 |
Gharda Institute of Technology, Chiplun |
Sewage |
30 |
BOD:? 300-400 PPM COD:? 500-800 PPM Turbidity: 200-250 NTU |
BOD:? 15-20 PPM COD:? 40-60 PPM Turbidity:? < 10 NTU |
> 95.00% |
Results of Bio Filter + Nano Filter
Parameters |
Raw Sewage Inlet |
Bio filter Outlet |
NF Permeate |
NF Reject |
pH |
7.5-8.5 |
7.5-8.5 |
7.5-8.0 |
8-8.5 |
TDS (ppm) |
Up to 700 |
Up to 700 |
Up to 100 |
Up to 2100 |
Turbidity (NTU) |
Up to 500 |
Up to 20 |
Up to 1.0 |
Up to 50 |
COD (ppm) |
Up to 500 |
Up to 50 |
Up to 10 |
Up to 100 |
BOD (ppm) |
Up to 250 |
Up to 30 |
Up to 5 |
Up to 20 |
DO (ppm) |
Nil |
3-5 |
||
Color |
Dark Grey |
Pale Yellow |
Clear colorless |
Yellow |
Odor |
Strong |
Odorless |
odorless |
odorless |
TKN (ppm) |
80 - 100 |
8 - 10 |
Up to 1.0 |
12 - 20 |
Phosphates (ppm) |
1 - 2 |
3 - 4 |
Up to 1.0 |
15 |
Potassium (ppm) |
20 - 25 |
30 -? 35 |
Up to 1.0 |
40 |
